Description

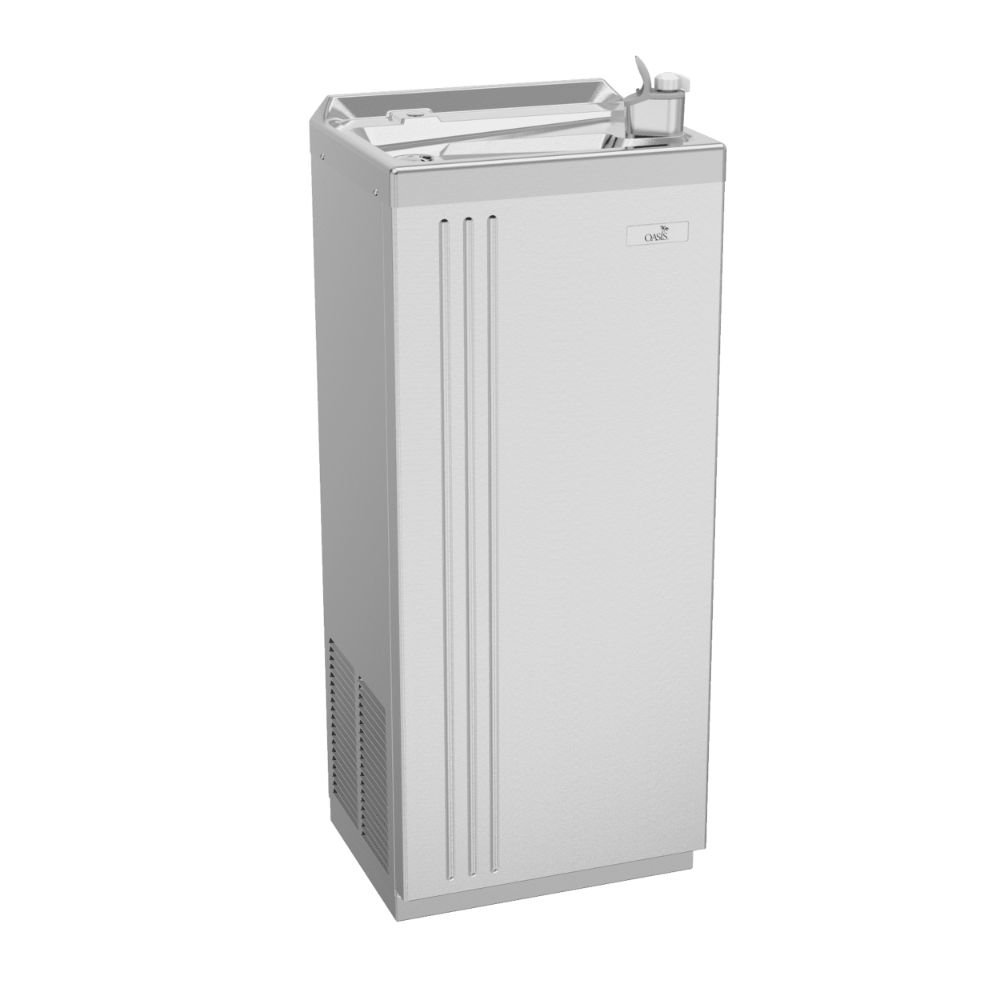

The Oasis PLF8FAHY is a free-standing hot and cold drinking fountain for schools, hospitals, offices, gyms and public buildings in Oman. It delivers 60 litres per hour of chilled water at 10°C and also dispenses hot water, so one unit covers drinking water and hot drinks. UV Water Systems supplies, installs and services the PLF8FAHY in Muscat and across the Sultanate.
The Dial-A-Drink adjustable bubbler lets users set the stream height, and the flexible bubbler guard protects the outlet in busy areas. Refrigeration switches on only when water is drawn, or when stored water warms during long standby, which keeps running costs low in the Omani heat.
Why Choose a Hot and Cold Drinking Fountain
Many sites run a drinking fountain plus a separate kettle or hot water boiler. A hot and cold drinking fountain replaces both with one plumbed-in unit: no bottles to carry, no kettles in corridors, and one point to maintain. The brushed stainless steel cabinet sits on a heavy-duty galvanised steel chassis and stands up to heavy daily use.
Features and Benefits
- 60 LPH chilled water: rated capacity of 60 litres per hour at 10°C (21°C ambient), plus hot water on demand.
- Dial-A-Drink adjustable bubbler: mechanical activation with a flexible bubbler guard. No sensors to fail.
- Free-standing cabinet: place the hot and cold drinking fountain anywhere near a water line, drain and power point.
- Built-in drain: waste water goes straight to the drain for clean, hygienic operation.
- Lead-free waterways: certified to ANSI/NSF 61 for drinking water contact.
- Built-in 100 micron strainer: protects the valves. An optional Oasis Green Filter improves taste and removes sediment.
- Optional Ultra Blu V disinfection: extra protection for hospitals and clinics.
- Accessible design: complies with ADA and CABO/ANSI A117.1 when correctly installed.
- Energy-saving refrigeration: R-134a or R-290a refrigerant, cooling on demand.
Applications in Oman
The PLF8FAHY hot and cold drinking fountain suits:
- Schools, colleges and universities
- Hospitals, clinics and staff rooms
- Offices, pantries and government buildings
- Gyms, sports clubs and community centres
- Mosques, factories and site welfare areas
For higher demand, the Oasis PLF14FAHY delivers 106 LPH of chilled water with hot water in the same footprint. Cold-only versions (PLF8FAY and PLF14FAY) are also available. Ask us for details.
Technical Specifications
| Brand | Oasis |
|---|---|
| Model | PLF8FAHY |
| Type | Free-standing refrigerated drinking fountain, hot and cold |
| Activation | Mechanical, Dial-A-Drink adjustable bubbler with flexible bubbler guard |
| Cooling capacity | 60 LPH at 10°C (21°C ambient) |
| Hot water | Yes |
| Refrigerant | R-134a or R-290a |
| Filtration | Built-in 100 micron strainer, Green Filter (optional) |
| Disinfection | Ultra Blu V (optional) |
| Drainage | Built-in drain |
| Exterior | Brushed stainless steel |
| Chassis | Heavy-duty galvanised steel |
| Dimensions | 1100 mm (H) x 432 mm (W) x 356 mm (D) |
| Net weight | 44 kg |
| Power supply | 220–240 V, 50/60 Hz |
| Rated power | 820 W |
| Full load amps | 4.7 A |
| Certifications | ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS) |
| Country of origin | Mexico |
Installation and Water Quality
Water in Oman often carries sediment, chlorine and high TDS, which also causes scale in hot tanks. We recommend feeding the fountain from a filtered line or a compact RO unit for better taste and a longer heater life. Our technicians connect the water line, drain and 220–240 V power point, then commission the unit on site.
Why Buy from UV Water Systems
UV Water Systems has worked in water treatment in Oman for over 14 years and is ISO 9001:2015 certified. We supply drinking water equipment to schools, hospitals, offices and government sites, with installation, filter changes and after-sales service across Muscat and Oman.
Short on floor space? See the wall-mounted Oasis PLF8FPMY recessed drinking fountain or our stainless steel water coolers. Full manufacturer details are on the Oasis PLF8FAHY product page.
Get a quote for the Oasis PLF8FAHY hot and cold drinking fountain today. Call or WhatsApp +968 9763 7786, or email sales@uvwater.biz.
